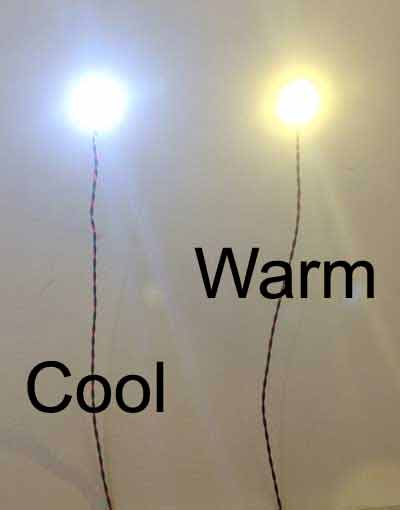

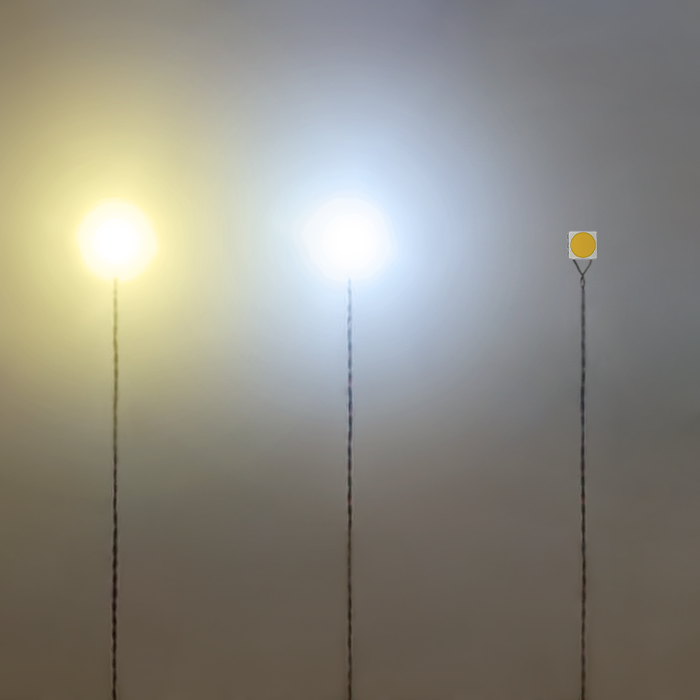

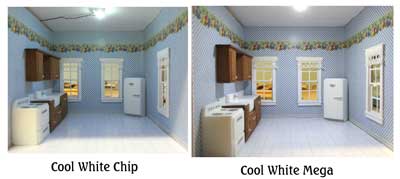

Our brightest LED yet! The mega is a great choice for whole room or whole building lighting. They are small, compact, and flat for easier mounting. And very, very bright!

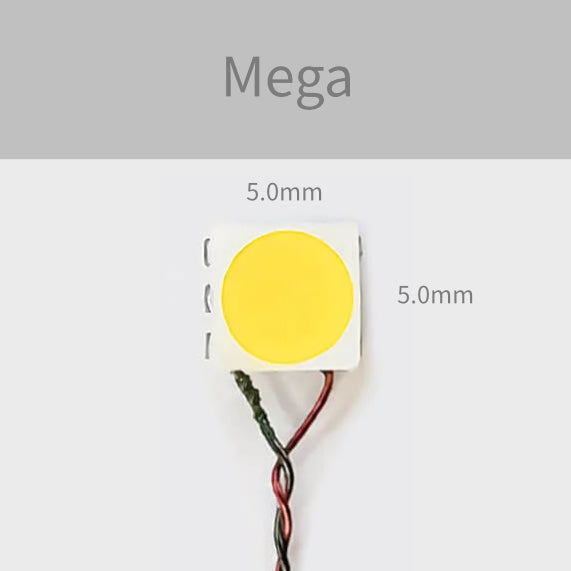

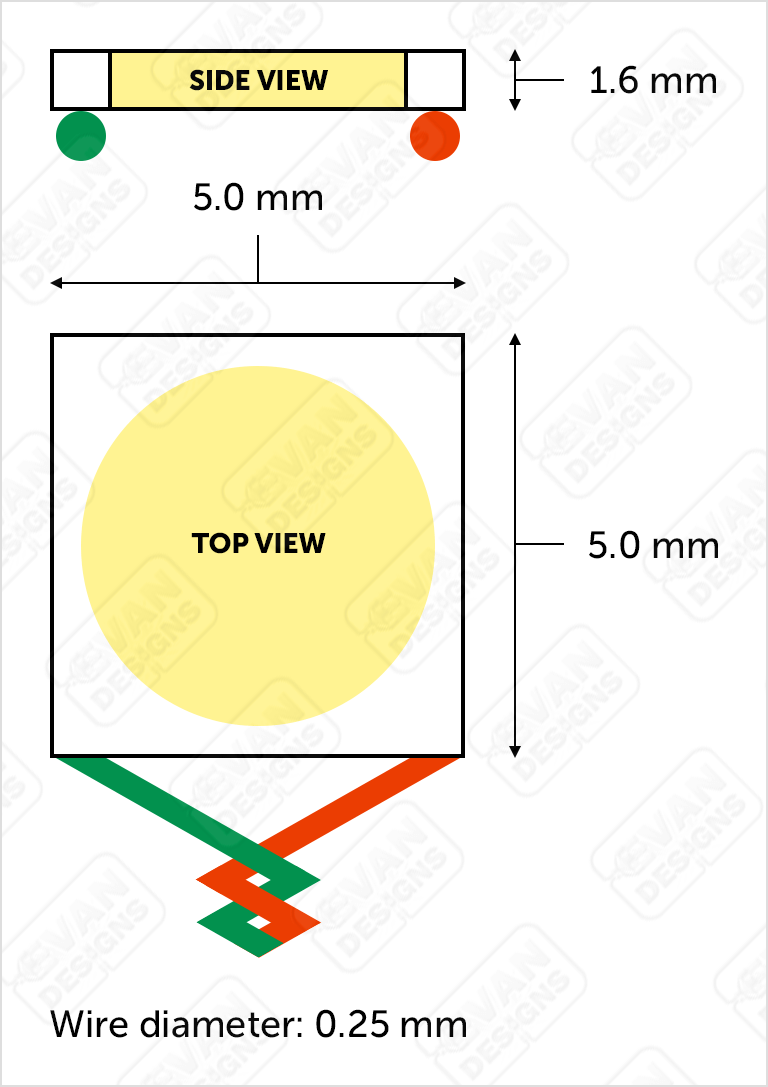

5mm x 5mm by 2mm thick.

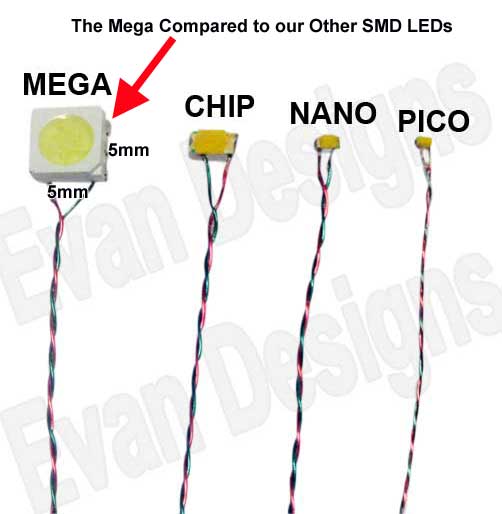

We have taken these SMD Chip style LEDs and taking care with tolerances, added 8 inches of red and green superfine magnet wire. Get these chips already wired, tested, guaranteed, and fully ready to connect to your power supply. No resistors need to be added, we have done that part!
- 3 volt DC
- 5-12 volt DC
- 7-19 volt AC/DC/DCC
"What do I need to run these?"
|3 volt use|

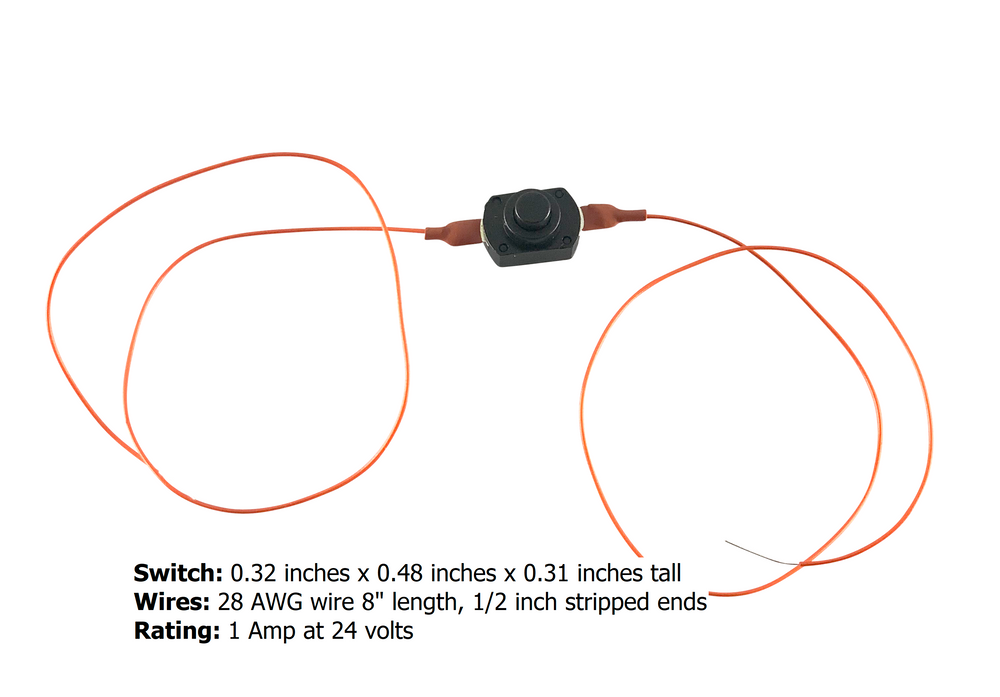

3 volt AAA holder with switch
|9 volt battery / regulated adapter|
9 volt get our
|Your own AC/DC or DCC supply: 7-19V|
7-19 volt Universal AC/DC/DCC lights
"How many can I run at once?"
The Megas draw more than any of our other LEDs, close to 22 milliamps each. So check your power supply to see how many milliamps it lists. A 1000 milliamp supply can run 45 or so Megas, but likely you will not need that many!
- A 3 volt AA holder can run 1-65 megas
- A 9 volt battery snap/switch can run 1-20.
- Our 3 Volt and 12 Volt power supply's can also run up to 45, and the 2 Amp versions can run 90.
"Can the Mega LEDs be run along with other LEDs from the same battery or power supply?"
Yes the Megas can be run right alongside all of the other sizes of LEDs on the same power supply.
All of our LEDs come with a 2 year warranty!

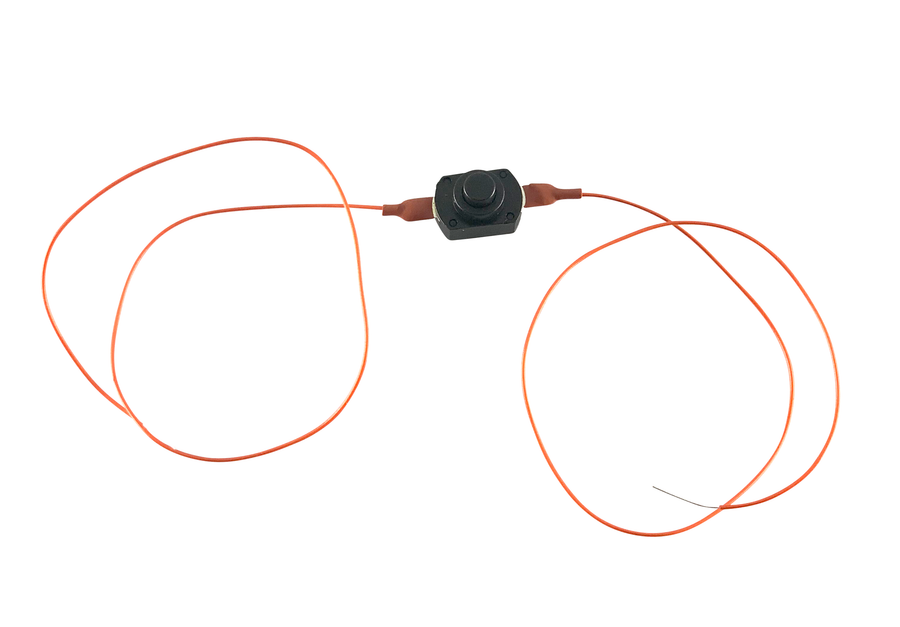

Don't forget these other accessories to help wire up your LEDs!
