Description
Our Knight Rider Circuit is built on the pattern of the lights used in car Kitt from Knight Rider.
This Scrolling LED pattern is also used in the Cylon Raider Eye for your Battlestar Galactica Fans. You can use it in other models that need a cool effect as well

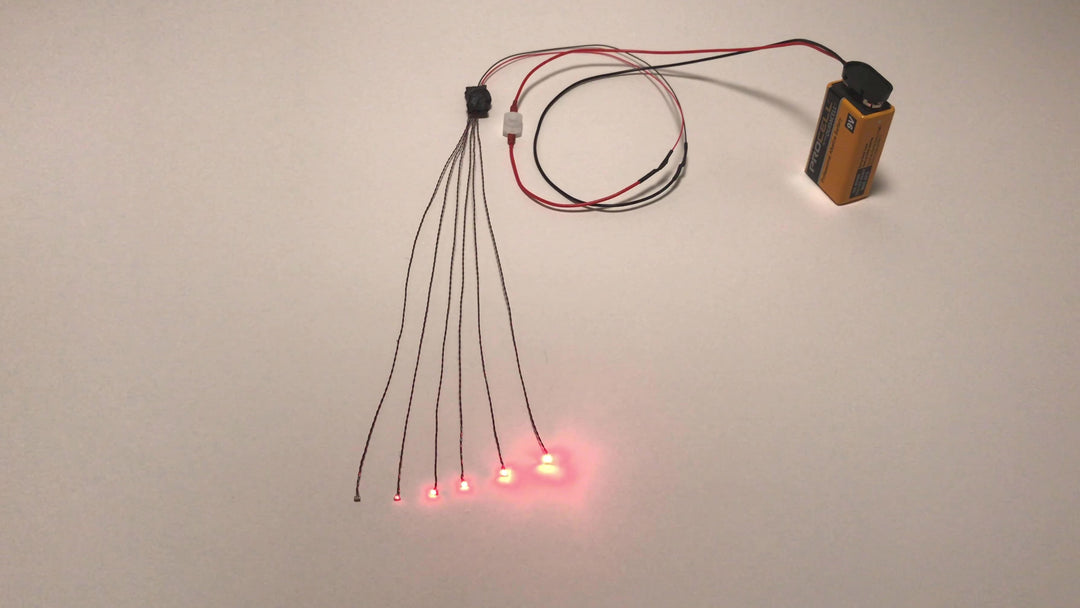

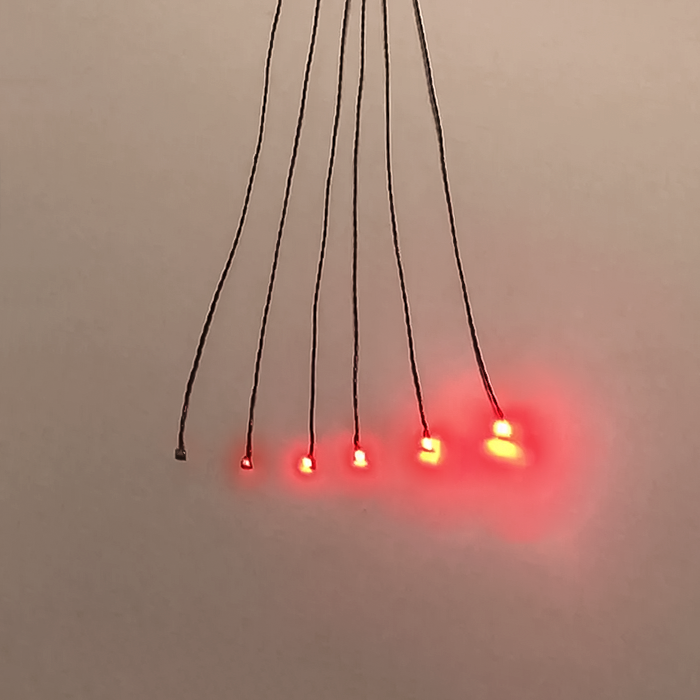

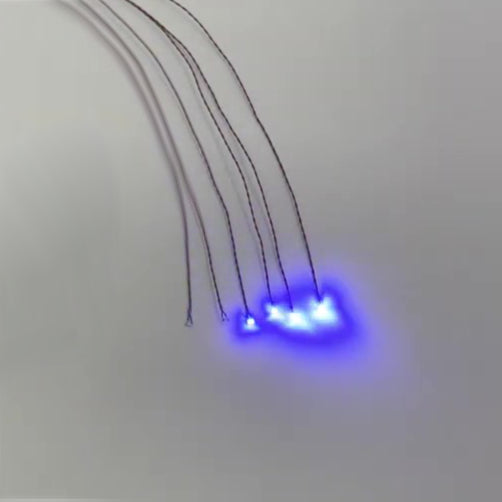

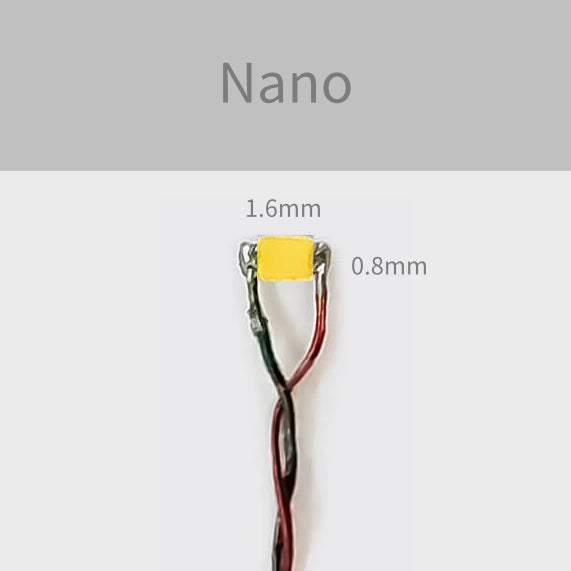

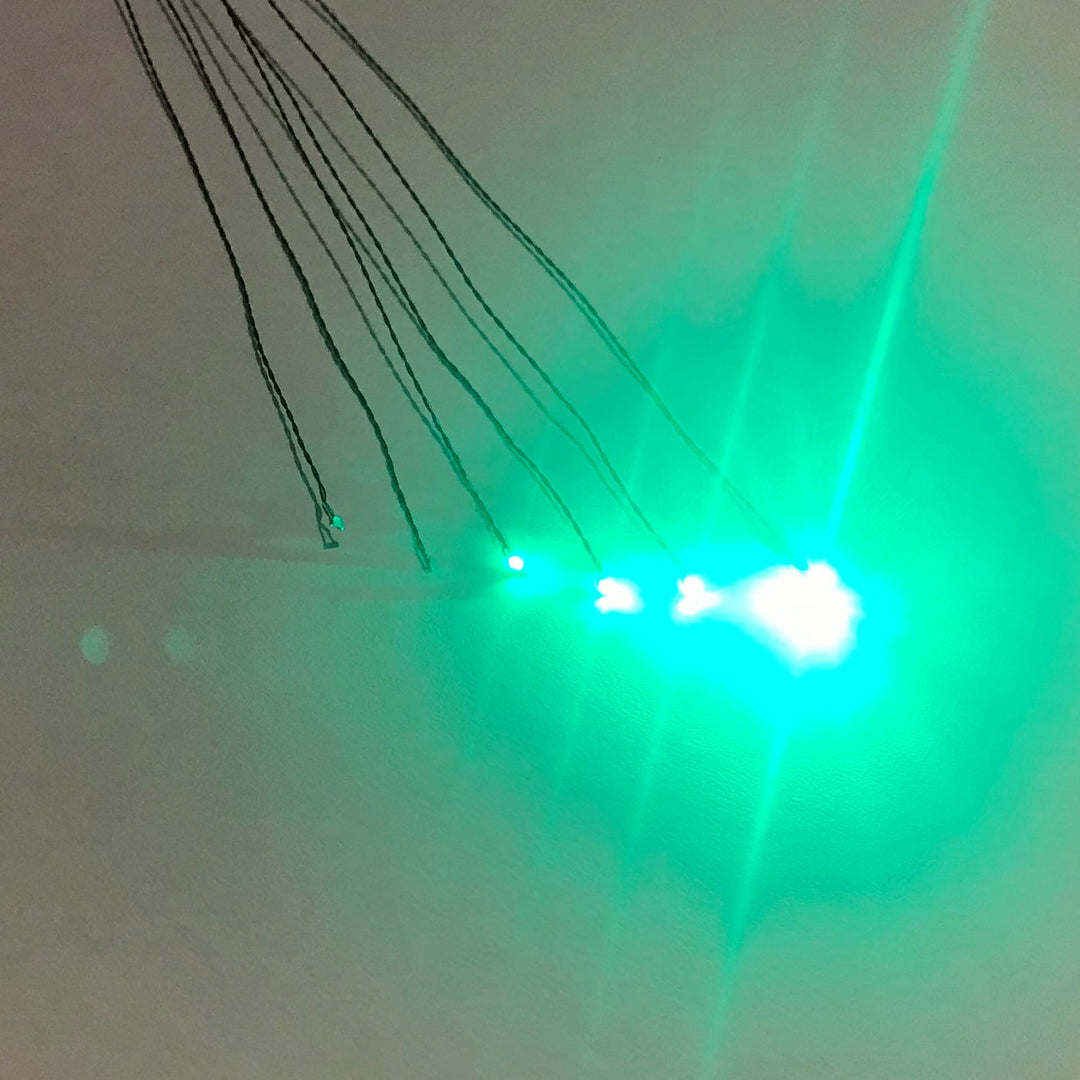

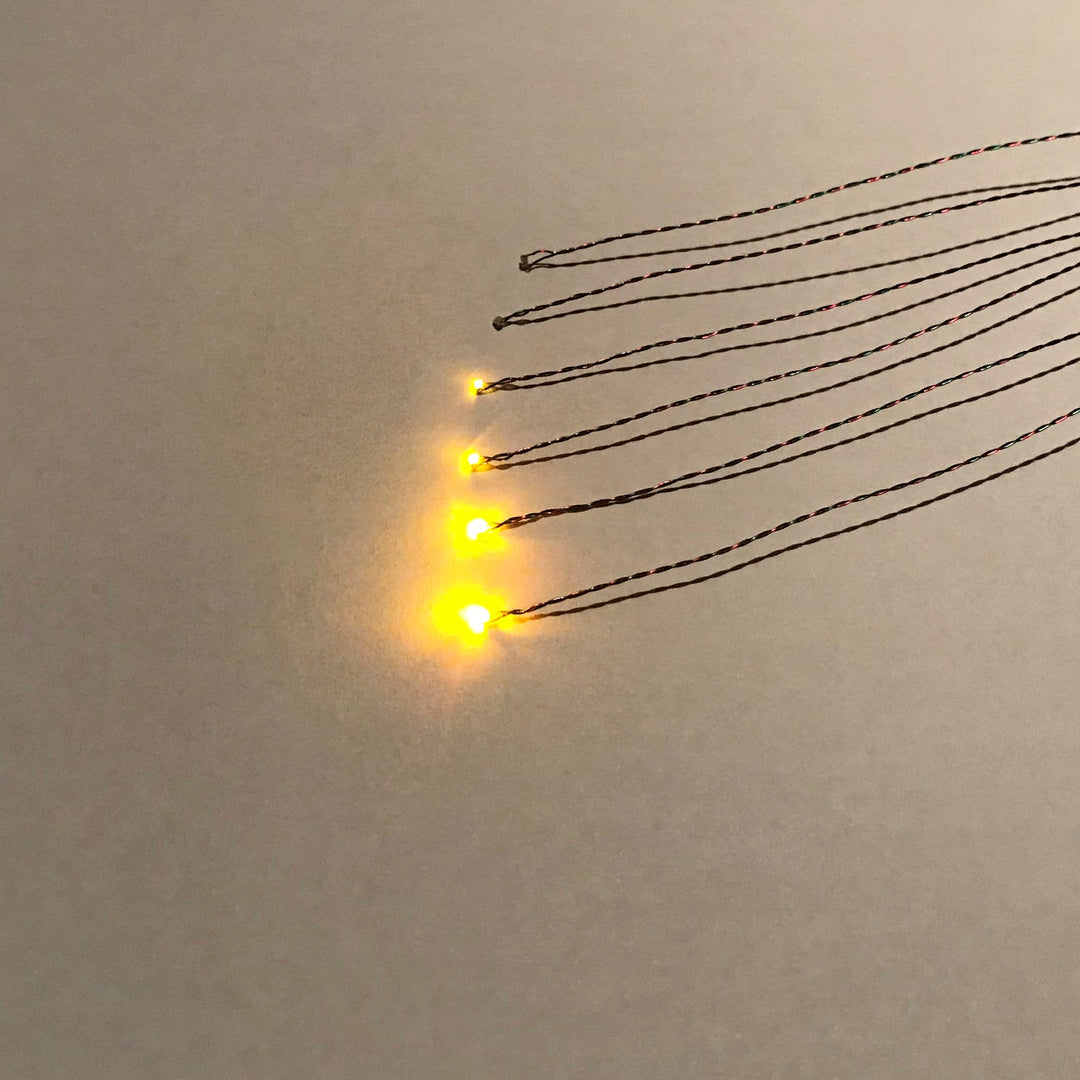

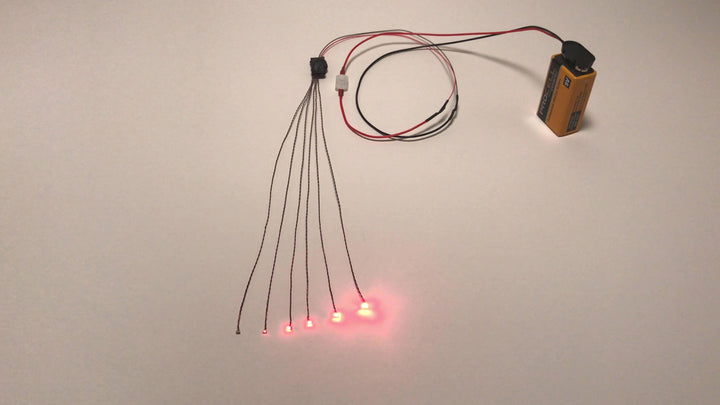

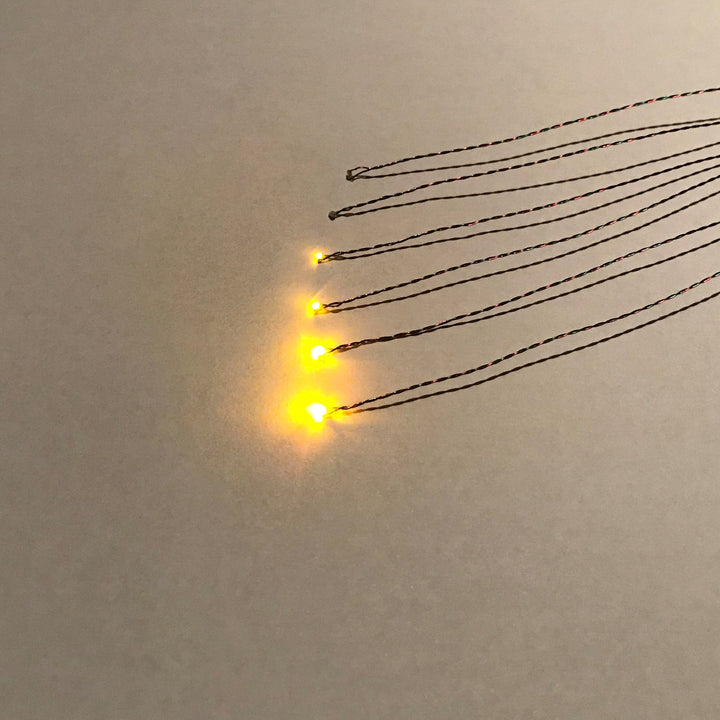

The custom-programmed microcircuit is attached to 6 or 8 small Nano size LEDs. Each light is on 8" wires. The light pattern moves back and forth between the LEDs with a fading chasing light trail.
The fully assembled tiny circuit can be fit into small cars or other projects that need this pattern.

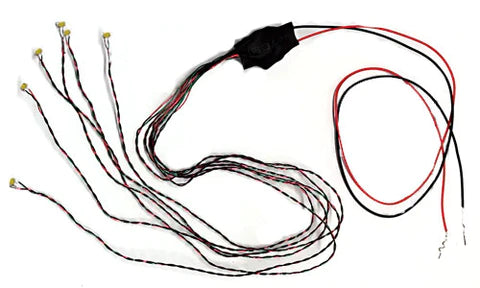

What you get:
- fully assembled shrink tubed circuit
- 8" input wires
- Choose from 6 or 8 LEDs each with 8" wires in your choice of colors
The wire length on the Nanos is slightly different so you can tell the order of lighting. The longest to shortest is the order for this chaser.
PRO TIP: You can take a video of the lights with your cell phone, then watch the playback at 1/4 speed. It will help you easily put the lights in order.
Circuit dimensions:- the 3 volt circuit is 4mm x 9mm by 17mm long
- The 6–12 volt circuit is 8mm x 10mm x 21mm long
- the 7–19 volt AC/DC circuit is 10mm x 18mm x 34mm long
"What do I need to run this circuit?"
| 3 volt use |
|---|
|
Our |
| 5-12 volt battery / regulated adapter |
|---|
|
Your own battery, or for 9 volt get our |
| Your own AC/DC or DCC supply: 7-19V |
|---|
|
7-19 volt Universal AC/DC/DCC circuit |
Models built by our customers using "Knight Rider LED Light Circuit"
