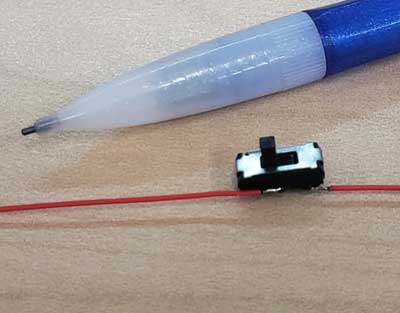

This tiny slide switch is a great on/off switch for projects where space is very restricted.

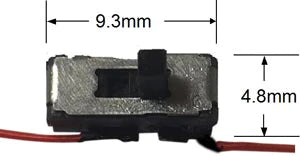

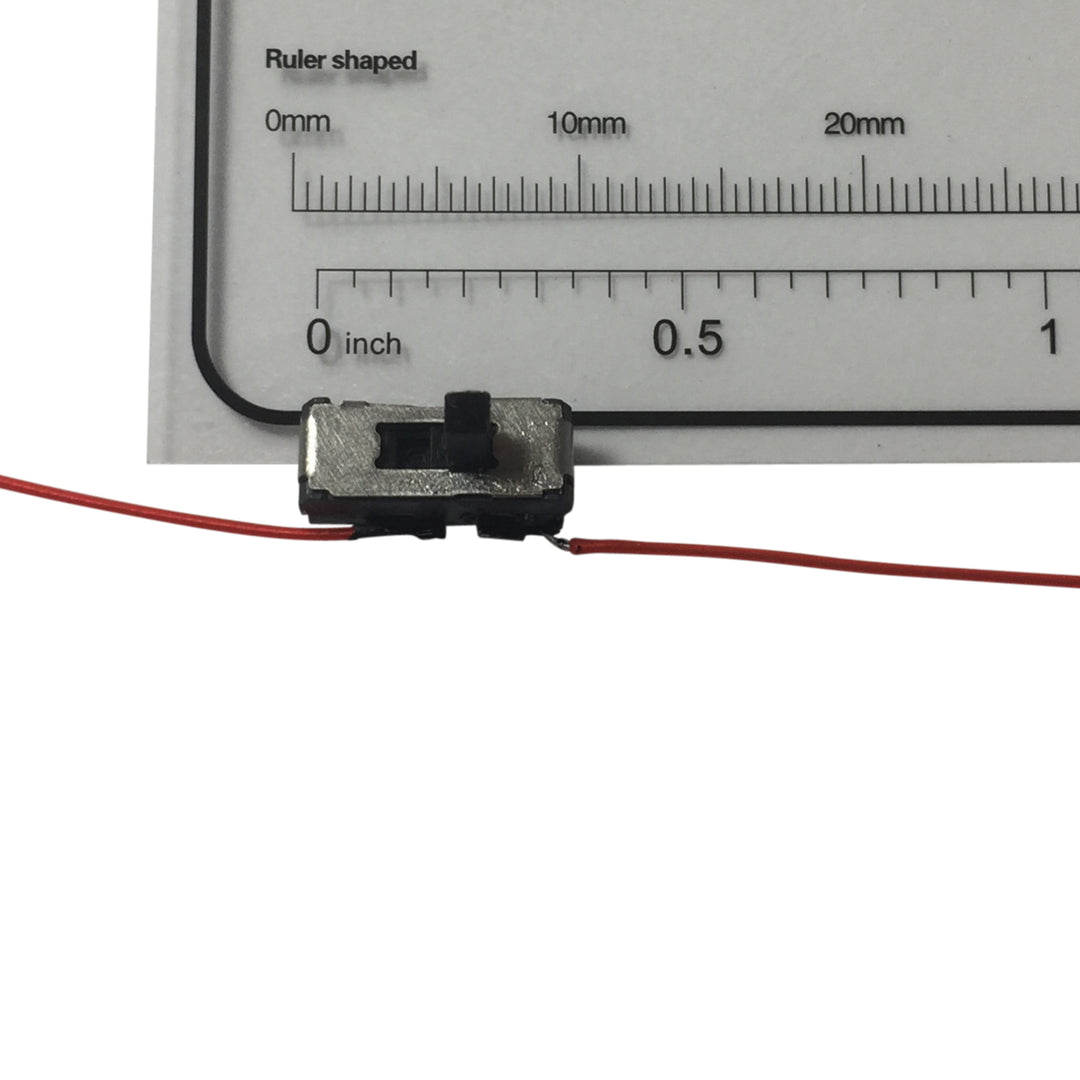

Dimensions:
- The height of the slide switch base is 3.4mm
- The height of the slide switch sticking up from the base is also 3.4mm
- This makes the slide switch's total height 6.8mm
Rating:
25 volt 0.5 amp rated, this slide switch can control up to 25 LEDs.

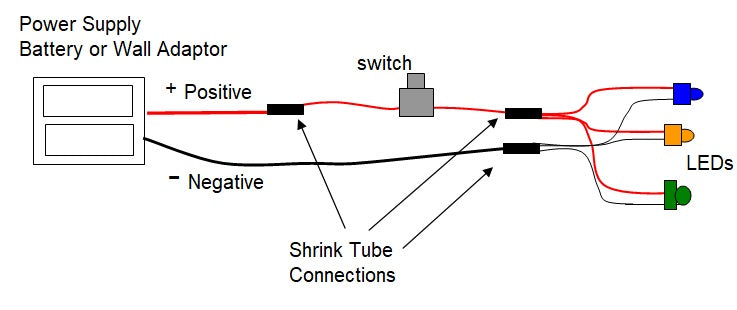

We have prewired the switch with 8" red kynar wires. If you have not added a switch to a project before, you add in the switch by connecting 1 of the red wires to the positive wire coming from your power source, the other red wire on the switch goes to the red of the LEDs you plan to control. Both red wires go to a red wire.
Customer Reviews
Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
G
With a bit of finagling I was able to shoehorn the watch battery holder, micro switch, and pico LED into each of 2 N scale buses. A single LED in each bus shines into the plastic optics for the headlights. The upcoming Rocky Mountain Train Show will be it's public debut. I hope that the watch battery will run one LED for 15 hours without having to change the battery!
D
Is so tiny!!!
It's perfect for my project
C
Exactly as described. Will be getting more!
G
Worked perfectly, replacing a faulty component that came with a kit, and so nice and small. Lighting is everything in my miniatures hobby and I know I can rely on Evan Designs.
S
This switch does exactly what you expect. The mechanism took a little more force than I expected to toggle so make sure the switch itself is well secured to your project so it doesn't come loose.
