Separated 7 to 19 V AC/DC LED
Separated 7 to 19 V AC/DC LED

Separated LEDs for AC/DC 7-19 Volts


Size
Solid or Flash
Wire Length
Color select color
Price
Regular price $4.00
Regular price Sale price $4.00
/
  • In stock, ready to ship
  • Backordered, shipping soon

Use these LEDs with 7-19 Volt of AC/DC/DCC

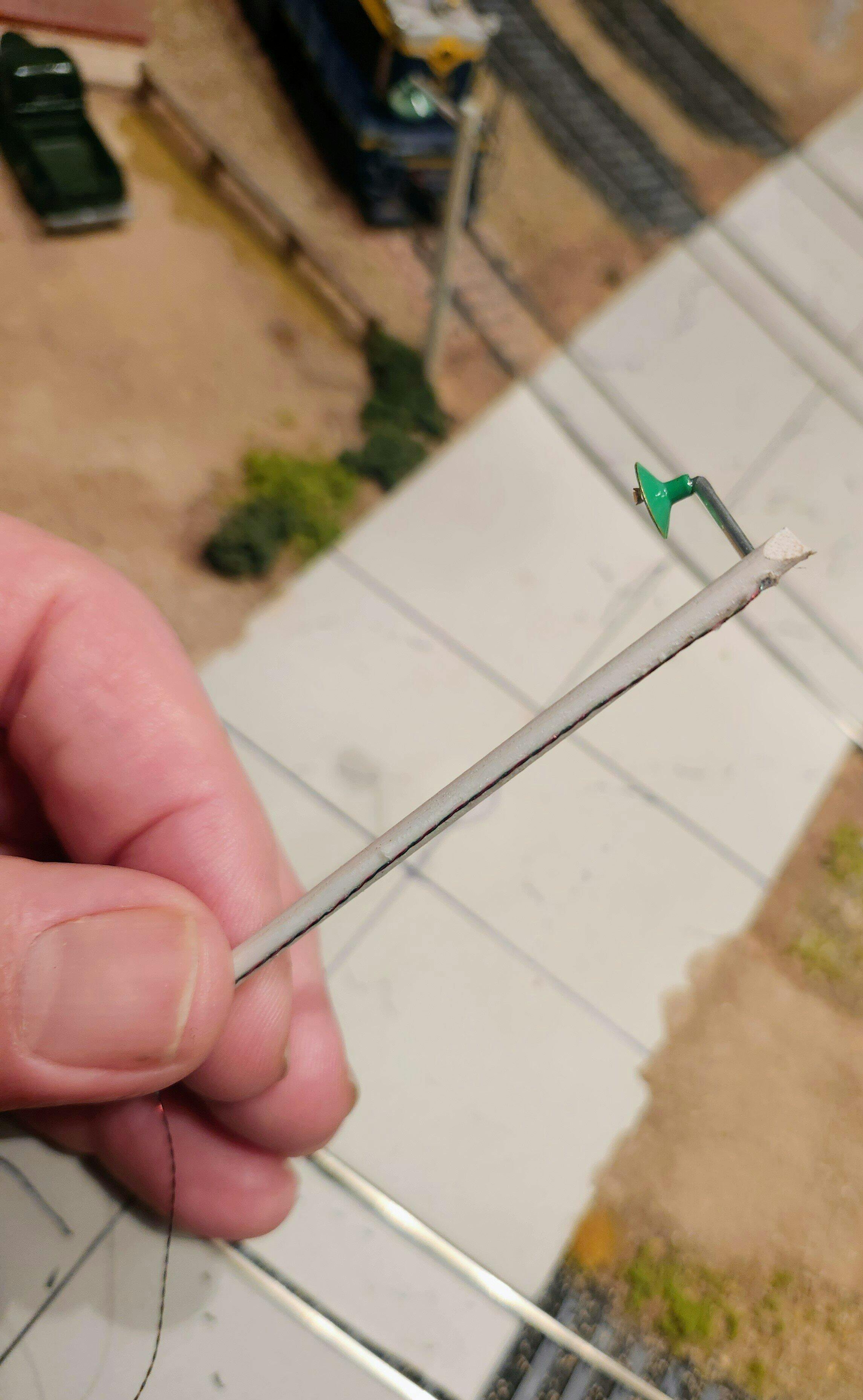

Fitting the LED into a narrow brass tube or inside of a model or a tower can necessitate a special setup. These LEDs are separated from the circuit.

With this separated unit, you can fish the LED in from the top and not have to worry about the rectifier/resistor getting in the way. Then, when you have the LED placed, attach the rectifier/resistor to it. Then light the mini LED up! Apply your 7-19 volt AC/DC/DCC power.

Please remember, in order to make the LED easy to use, it is a wire-only LED, there is no resistor in the wire. The LED itself can only handle 2-3 volt of DC power, which this rectifier unit provides. Do not test the LED on your intended power before you attach the resistor harness.

Also great for trackside vehicles, the rectifier can now be under the bench instead of inside the scenery element.



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Customer Reviews

Based on 11 reviews
100%
(11)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tom Hyman
Separated LEDs for AC/DC 7-19 Volts

Worked perfectly.

T
Tim
Awsome

Order staff is very helpful and knowledgeable.

R
Ron Lambert
Great Service and Great Products

Excellent communication to confirm my order was correct. Have ordered multiple times from Evans. Highly recommended.

R
Ron
G scale trains.

I got a lot of help from Melissa. She helped me figure out the things I needed and how to make them work the way I want. My son was a Disney Imagineer. He told me about all the great things they have. I have a large scale train in my front yard. I have lots of up coming things I want to do. I hope between my son and the helpful folks like Melissa. I can add a lot of cool things to my out door trains. I love Evan Designs !!! 😁

J
Jim Jones
Nano LEDs

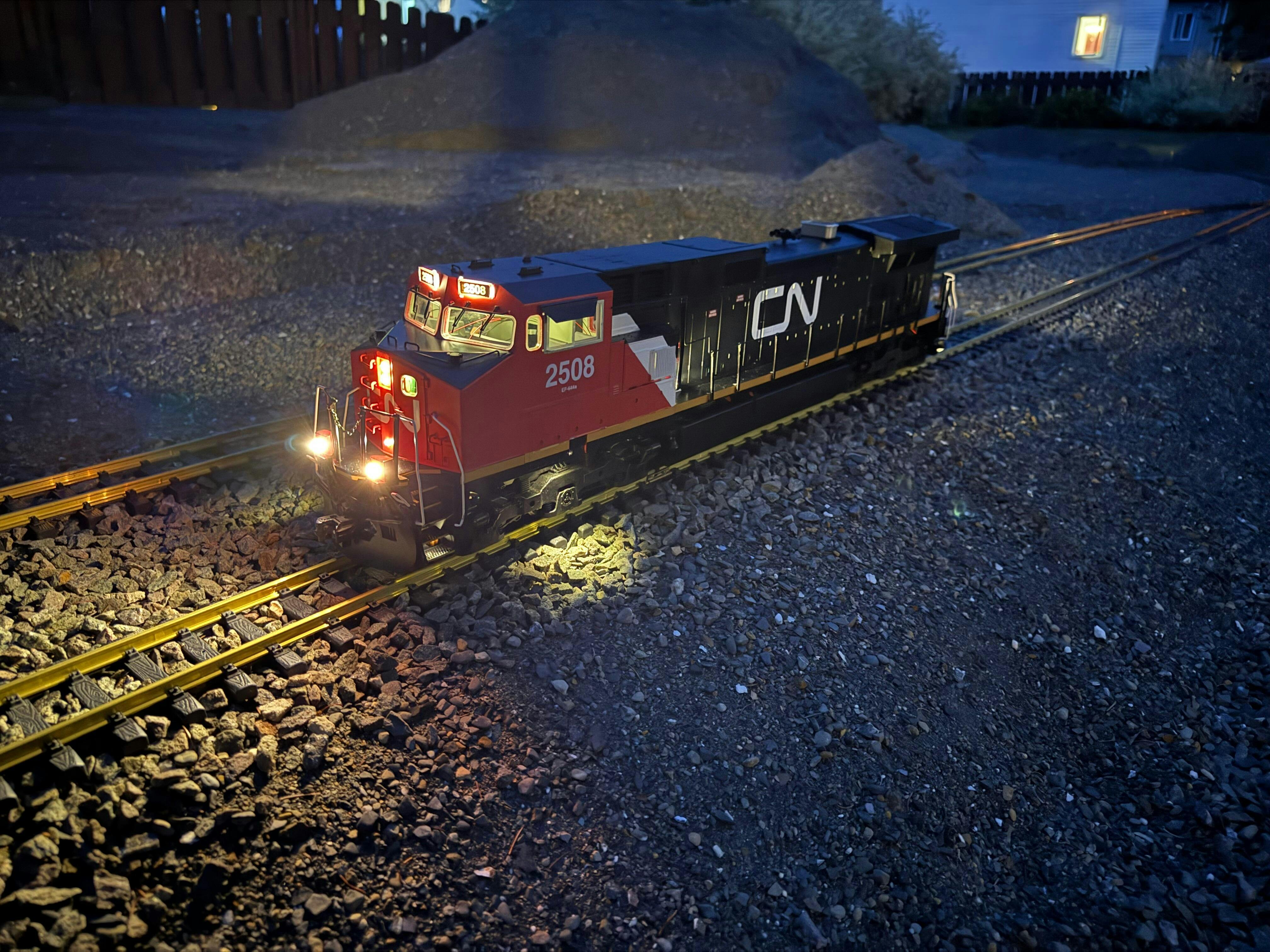

Installed them on the front ditch lights on a train engine. They look great. Very small to work with, but that’s what I needed.

M
Mitch Albinski
Green Leds

Items were delivered in a timely manner and in excellent condition. Have installed several units and they work fine.
Still have to use the flashing yellow LEDs but assuming they will work just as well. I will not hesitate to call upon Evan Designs for future modeling lighting needs

F
Francis Rebec
3 mm. lights, LED

Lights came 12-27-2021, and in good condition. Thank you!

M
Mike
Separated LEDs for AC/DC 7-19 Volts

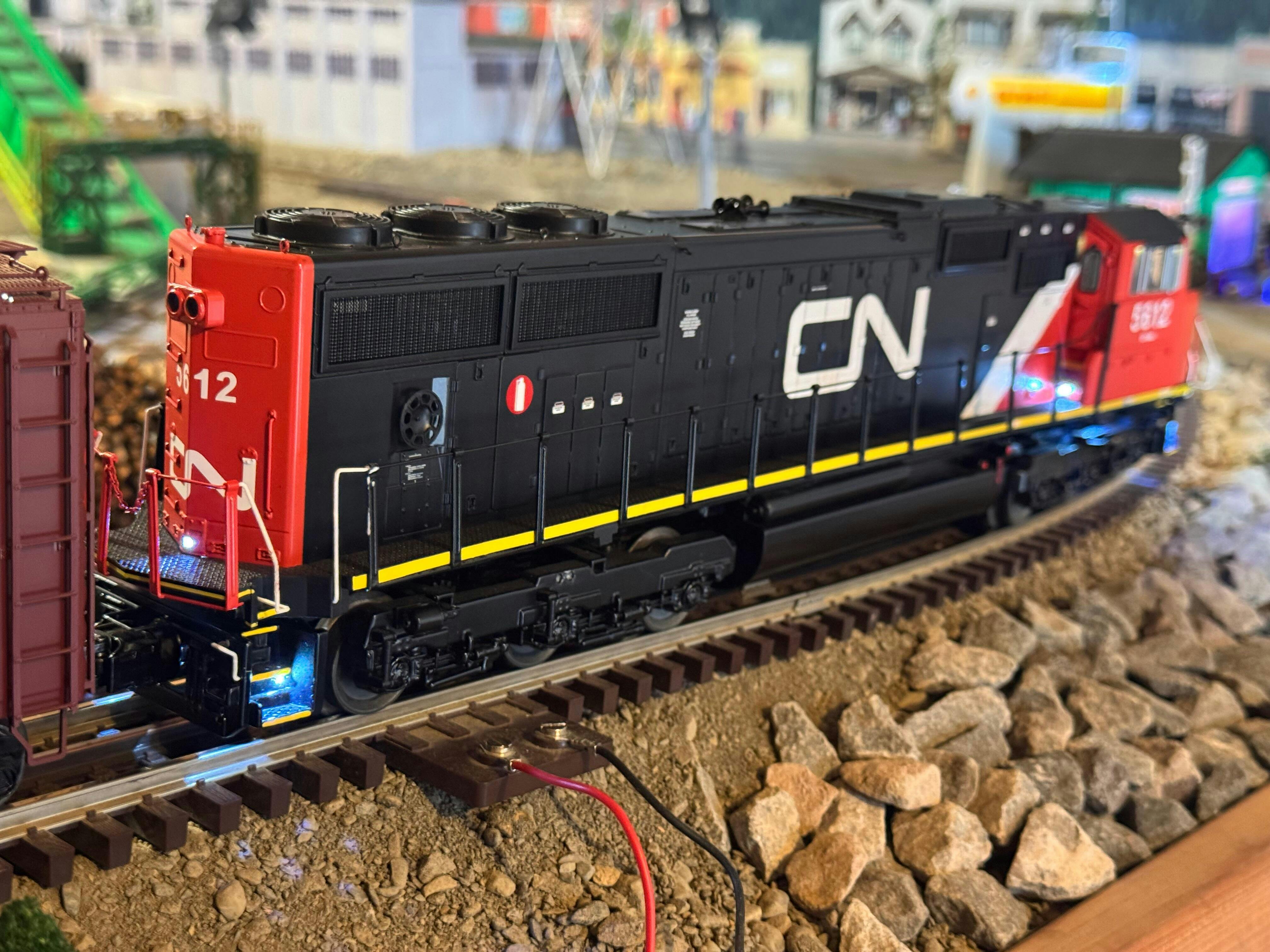

Ordered these light and matching rectifiers for HO scale train project. Lights will be perfect for my project, customer service is excellent.
