Miniature On Off Toggle Switch


Price
/
  • 278 items in stock, ready to ship
  • Backordered, shipping soon

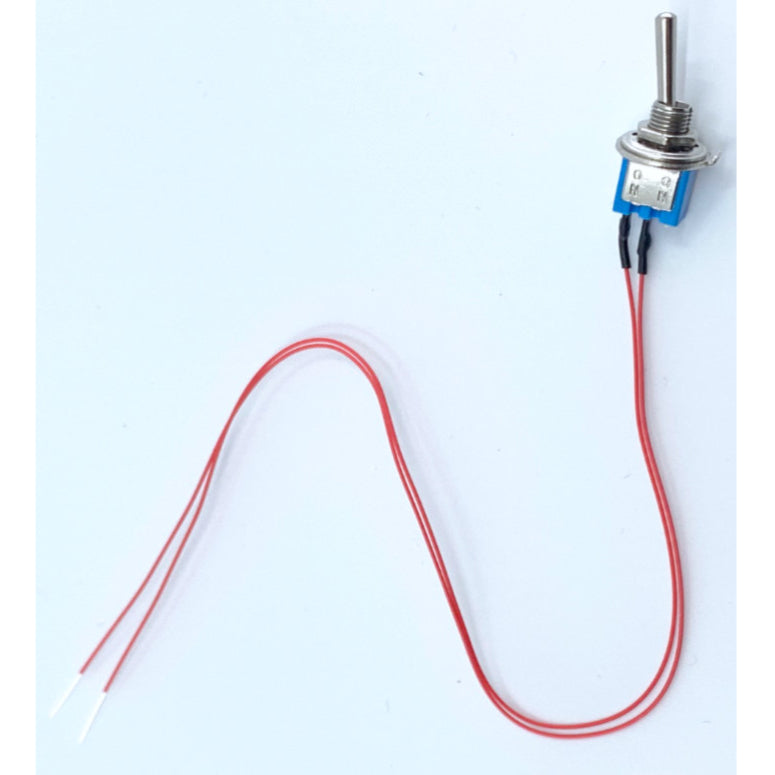

This panel mount style toggle switch can be used to turn your LED Lights on and off with the flip of a switch. We have pre-wired this switch with 8" of Kynar wire, so it is all ready to add to your hobby LED projects.

You will notice that this switch has 2 red wires. We thought this little diagram would help when you go to wire this switch into your project. The diagram shows a battery pack but this applies to basically any power supply. The switch is just an image of a switch, it is not a toggle in this diagram but the toggle will be installed the same way.

 how to wire a toggle switch into your project

One of the red wires on your little toggle goes to the power supply: either wall adapter or battery. The other red wire goes to your lights. It does not matter which of the red wires you connect to power or to the lights. Please note, there is no wire going to the black side of your battery or lights.

This switch can handle 1.5 Amps at 250 Volts. This miniature toggle is capable of controlling up to 75 LEDs.
